Automatic special tapping machines for air/oil filter covers:

powerful, flexible and user-adjustable

All our experience concentrated in a wide range of automatic

special tapping machines for air/oil filter covers.

  • slide
  • slide
  • slide
  • slide
  • slide
  • slide
  • slide
  • slide
  • slide
  • slide
  • slide
  • slide
  • slide
  • slide
  • slide
  • slide
  • slide
  • slide
  • slide
  • slide
  • slide

Record automatic special tapping machines for air/oil filter covers raise from the fundamental supposition to allow our most demanding customers to reach their productivity goals. High quality, reduction of wasted time and ease of use: these are the reasons why this machinery is the pride of our company.

Composed by two independent quick-change vertical spindles, equipped with a brushless motor, Record automatic special tapping machines for air/oil filter covers: achieve the highest performance levels. The unrefined pieces are carried to the work phase by an extremely efficient automotive component feeding that it is able to select, align and insert them into the tapping point position. The following locking of the piece can be hydraulic or pneumatic, according to our customer needs.

The strokes and the speed of work are independent of one another and can be typed on the operator panel. They can also be saved, retrieved and adjusted according to the type of working. The tapping torque is controlled by a microprocessor system which permits constant verification of the state of wear of the screw taps obtaining high-quality products. Solutions and applications can always be checkable in order to satisfy any market demand.

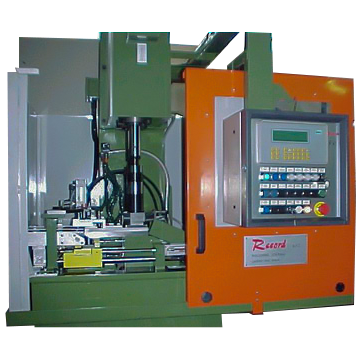

Record FV1 tapping machine

Tapping for removal of filter covers up to 1 "3/4

Record FV2 tapping machine

Simultaneous roll tapping of two filter covers up to 1 "3/4

 Record TM 2 L computer numerical control transfer machine

External turning and tapping of filter covers up to M39x1.5



FV1 TECHNICAL INFORMATIONS

TAPPING CAPACITY UNF 1"
HOURLY PRODUCTION (3/4UNF) pz 1200/1300
WORKING SPEED g/1' 5-1150
RETURN SPEED g/1' 5-1150
MOTOR TORQUE (BRUSHLESS) Nm 24
OPERATING STROKE mm 100
MANDREL HITCH DIN 55050
HOPPER CAPACITY  Lt 700



FV2 TECHNICAL INFORMATIONS

TAPPING CAPACITY UNF 1"3/4
HOURLY PRODUCTION pz 1350
WORKING SPEED g/1' 5-1600
RETURN SPEED g/1' 5-1600
MOTOR TORQUE (BRUSHLESS) Nm 150
OPERATING STROKE mm 120
MANDREL HITCH tr36 DIN 6327
HOPPER CAPACITY Lt 700

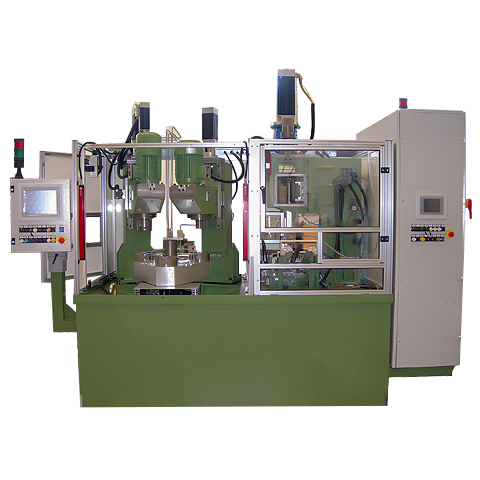

TM2L TECHNICAL INFORMATIONS

Plant  realized for turning and tapping operations of oil filter covers with Ø 136 mm by rolling taps from M39x1.5 to R1.1 / 4 ”-11.
Plant divided into 2 sectors:

  1. Transfer machine with three stations for piece loading, external diameter turning and collar turning
  2. Tapping operations
